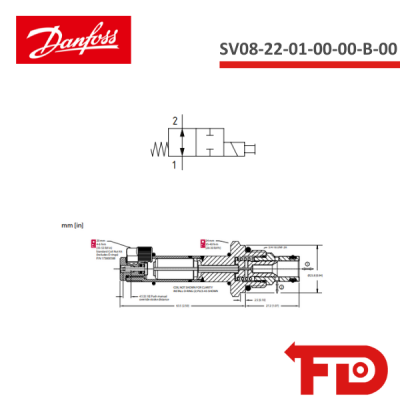

805312819 - 2-WAY - SV08-22-01-00-00-B-00 - DANFOSS

Solenoid Valve, 2-way, Spool Type, Normally Open

230 bar [3300 psi] • 16 l/min [4.2 US gpm]

OPERATION AND DESCRIPTION

This is a 2-way, 2-position, spool type, direct acting, normally open solenoid valve. When de-energized, flow can take place from port 2 to 1 and from 1 to 2. In its energized condition, flow is blocked in both directions. The valve will be subject to normal spool leakage dependent on the pressure dfference between the ports. They come standard with a push pin manual override. These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the energized condition.
