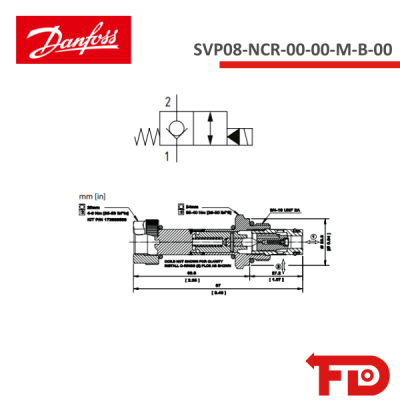

83024333 - 2-WAY - SVP08-NCR-00-00-M-B-00 - DANFOSS

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Pilot Operated with Reverse Free Flow

230 bar [3300 psi] • 35 l/min [9 US gpm]

 OPERATION AND DESCRIPTION

This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, flow passes from port 1 to 2 but is  blocked in the opposite direction. When energized, flow passes from port 2 to 1 and from 1 to 2. Some models have the option of a fllter at port 2. Due  to the low leakage provided by the poppet design, these valves can be used to hold loads in position or to interrupt a pressure line where flow normally  passes in both directions.
