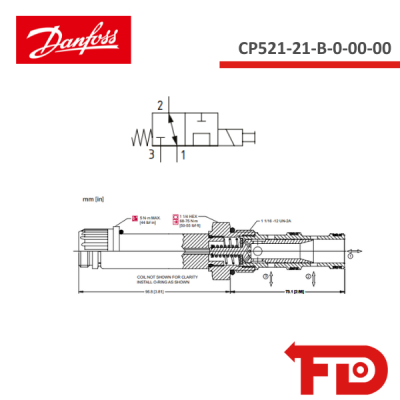

139811 - 3-WAY - CP521-21-B-0-00-00 - DANFOSS

Solenoid Valve, 3-Way, 2-Position, Spool Type
240 bar [3500 psi] • 60 l/min [16 US gpm]

OPERATION AND DESCRIPTION
This is a 3-way, 2-position, direct-acting solenoid valve with a spool-type design.
In the de-energized state, port 1 is open to port 2, while port 3 is blocked.
When energized, port 3 is open to port 1, and port 2 is blocked.

These valves can be configured for normally open, normally closed, or selector functions.
They feature an open transition during shifting, which helps reduce pressure spikes when changing flow direction.

Always verify the valve’s operating parameters to ensure suitability for your specific application.
