805315319 - 2-WAY - SVP08-NOR-00-00-B-00 - DANFOSS

Solenoid Valve, 2-Way, Poppet Type, Normally Open, Pilot Operated with Reverse Free Flow

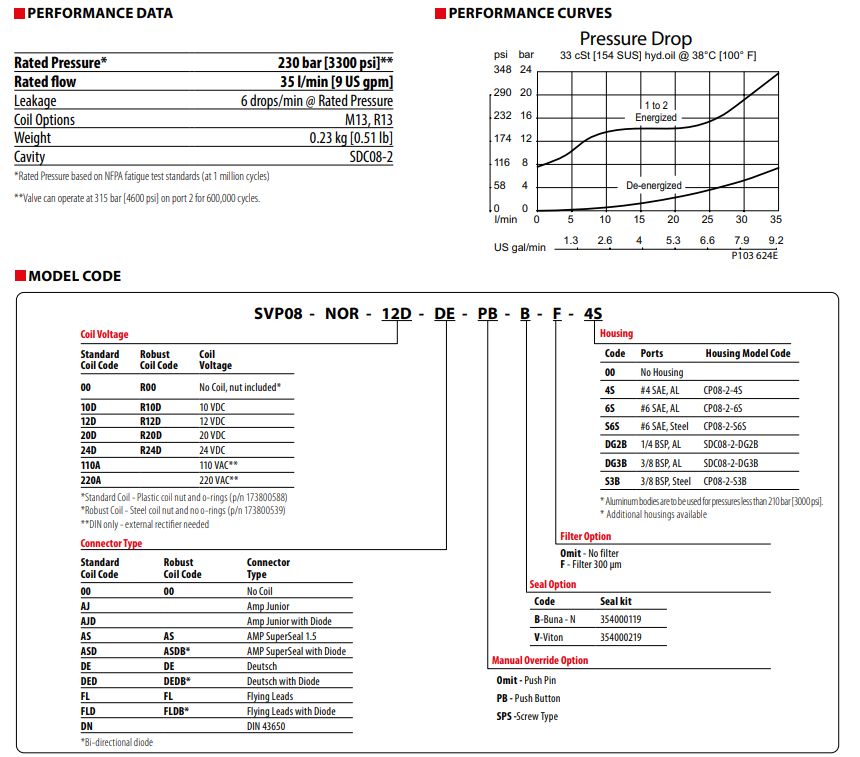

230 bar [3300 psi] • 35 l/min [9 US gpm]

OPERATION AND DESCRIPTION

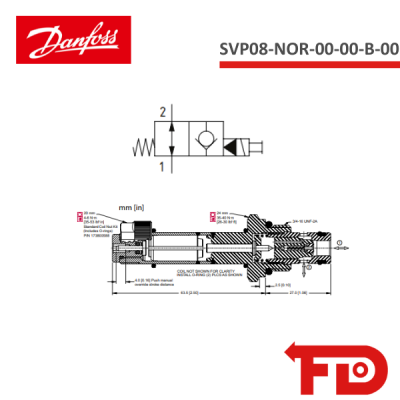

This is a 2-way, 2-position, pilot-operated poppet-type solenoid valve, normally open in its de-energized state.
When de-energized, flow is allowed in both directions— from port 2 to port 1 and from port 1 to port 2.
When energized, flow is permitted only from port 1 to port 2, while flow in the reverse direction is blocked.

The poppet design minimizes leakage.
Certain models offer an optional filter at port 2 and are supplied as standard with a push-pin manual override.

Typical applications include:

• Load holding when the valve is energized

• Interruption of a bidirectional pressure line

• Fail-safe bypass of excess oil to the tank
