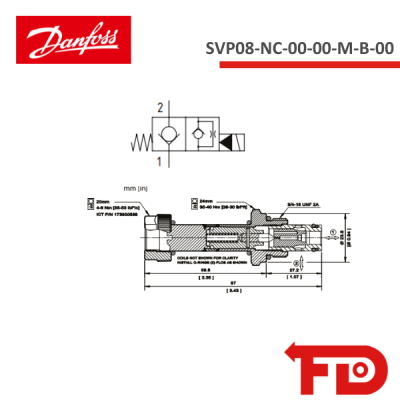

83019507 - 2-WAY - SVP08-NC-00-00-M-B-00 - DANFOSS

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Pilot Operated 230 bar

[3300 psi] • 35 l/min [9 US gpm]

OPERATION AND DESCRIPTION

This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, flow passes from port 1 to 2 but is blocked in the opposite direction. When energized, flow passes from port 2 to 1 but is restricted in the opposite direction. Some models have the option of a filter at port 2. Due to the low leakage provided by the poppet design, these valves can be used to hold loads in position and bypass excess oil to tank
