850254119 - FLOW REGULATOR PSV10-NC-40-00-00-B-00 - DANFOSS

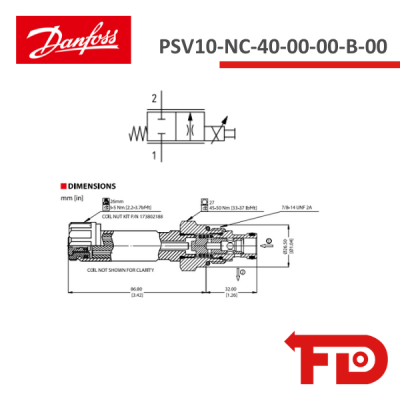

Description: PSV10-NC-40-00-00-B-00

Function: Proportional Flow Control Valve, Spool Type, Normally Closed, Direct Acting, Non-Compensated

Proportional Flow Control Valve, Spool Type, Normally Closed, Direct Acting, Non-Compensated 260 bar [3800 psi]• 40 I/min [10.6 US gpm]

This is a 2-way, spool type, normally closed, non-compensated proportional flow control valve. In the de-energized condition, flow is blocked in both directions. Energizing the coil will proportionally open port 1 to 2. Used in conjunction with a compensator, the valve will act as the control orifice for a pressure compensated flow regulator.

Price available only for registered users

If you need help Contact Us!

850254119
Danfoss
