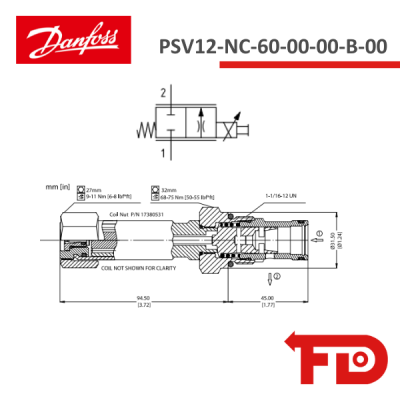

83037335 - FLOW REGULATOR PSV12-NC-60-00-00-B-00 - DANFOSS
Description: PSV12-NC-60-00-00-B-00
Function: Proportional Flow Control Valve, Spool Type, Normally Closed, Direct Acting, Non-Compensated

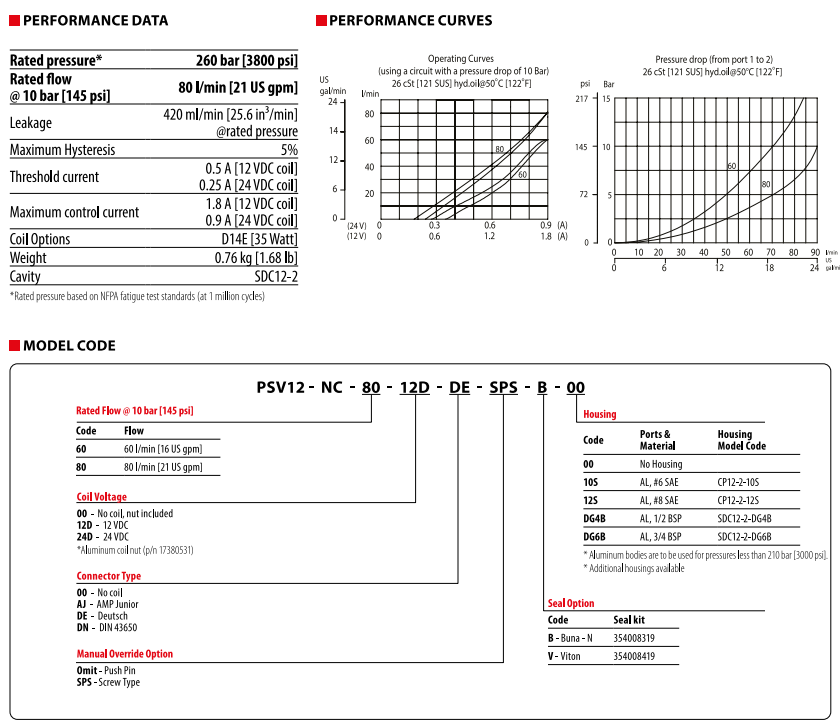

Proportional Flow Control Valve, Spool Type, Normally Closed, Direct Acting, Non-Compensated 260 bar [3800 psi] • 80 I/min [21 US gpm]
This is a 2-way, spool type, normally closed, non-compensated proportional flow control valve. In the de-energized condition, flow is blocked in both directions. Energizing the coil will proportionally open port 1 to 2. Used in conjunction with a compensator, the valve will act as the control orifice for a pressure compensated flow regulator.
83037335
