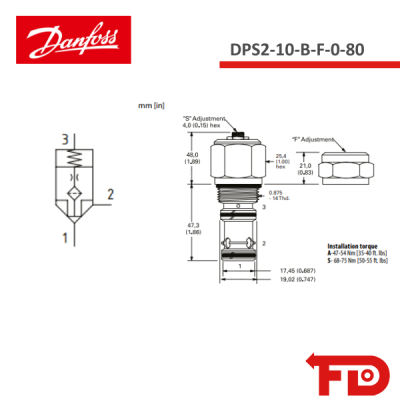

566449 - LOGIC ELEMENT - DPS2-10-B-F-0-80 - DANFOSS

Logic Element, Normally Closed, Poppet Type, Vent to Open

350 bar [5000 psi] • 60 l/min [16 US gpm]

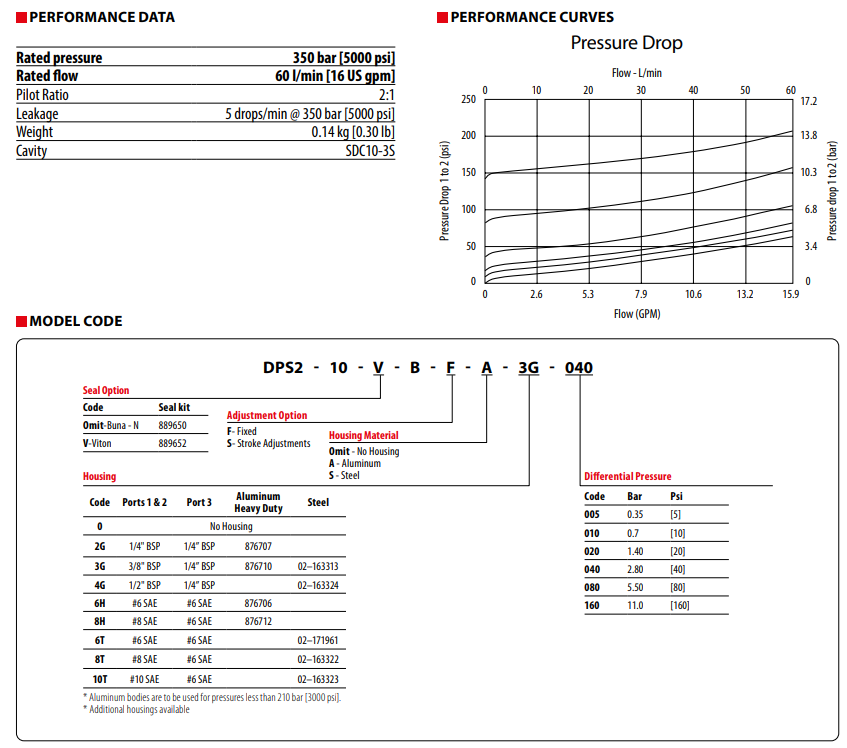

DESCRIPTION AND OPERATION

This is a 3-ported, vent to open, poppet type logic element with port 1 connected to port 3 through an orifice. By opening port 3 to tank, flow can pass from port 1 to port 2 or from port 2 to port 1. Closing port 3 will prevent the valve from opening from port 1 to port 2, but flow can still take place from port 2 to port 1. The area ratio between port 1 and 3 is 1:2 and the ratio between port 1 and 2 is also 1:2. By controlling the flow or pressure out of port 3, the valve can be used as an on/off valve or in a pressure control function.
