805347319 - SOLENOID OPERATED CARTRIDGE SV10-24-12-00-00-B-00 - DANFOSS

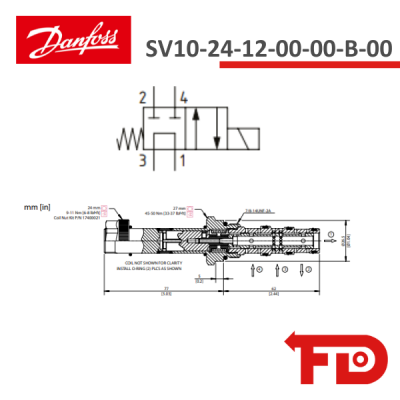

Description: SV10-24-12-00-00-B-00

Function: 4 WAY-2 POS ON-OFF SPOOL VALVE

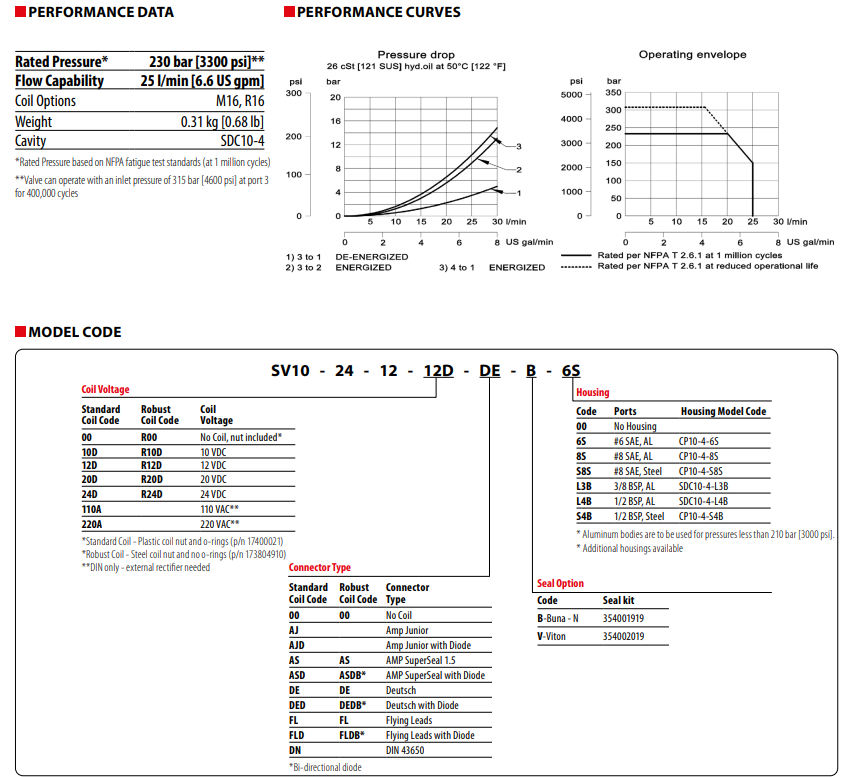

Solenoid Valve, 4-way, 2-position, Spool Type 230 bar [3300 psi] • 25 l/min [6.6 US gpm]

This is a 4-way, 2-position, spool type, direct acting solenoid valve. In the de-energized condition, port 3 is open to 1 while ports 2 and 4 are blocked. When energized, port 1 is open to 4 and port 2 open to 3. This valve allows the inlet oil to pass through the valve to tank or a separate system while holding the actuator in position. Always check the operating envelope to make sure the valve will work under the required application conditions. Port 1 is not intended as inlet (Tank only).
