83010873 - LOGIC ELEMENT CP701-1-B-0-170 - DANFOSS

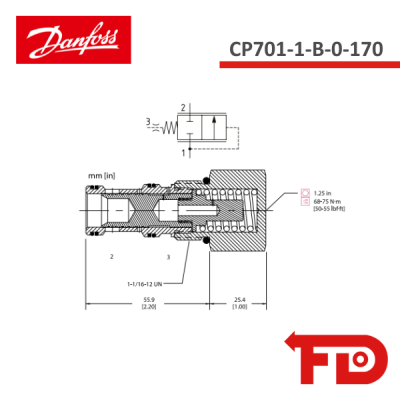

Description: CP701-1-B-0-170

Function: Logic Element, Normally Closed, Spool Type, Pilot to Close

Logic Element, Normally Closed, Spool Type, Pilot to Close 3S0 bar [S000 psi]• 1 SO I/min [40 US gpm]

This is a 3-ported, normally closed, pilot to close spool type logic element. By opening port 3 to tank, flow can pass from port 1 to port 2. Flow is blocked from port 1 to port 2 unless the pressure is high enough in port 1 to overcome the spring set pressure. Applying pressure to port 3 will increase the pressure required in port 1 to open the valve by a factor of 1 to 1. This valve is ideal for use as a pressure compensator, bypass valve, or a pilot to close valve in regenerative circuits.

Price available only for registered users

If you need help Contact Us!

83010873
Danfoss
