130504 - LOGIC ELEMENT - CP701-1-B-0-050 - DANFOSS

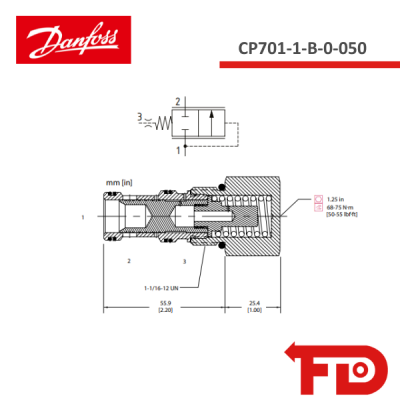

Logic Element, Normally Closed, Spool Type, Pilot-to-Close
350 bar [5000 psi] • 150 l/min [40 US gpm]

DESCRIPTION AND OPERATION
This is a 3-port, normally closed, spool-type logic element with pilot-to-close functionality.
When port 3 is open to tank, flow is allowed from port 1 to port 2.
Flow from port 1 to port 2 is otherwise blocked unless the pressure at port 1 exceeds the spring setting.

Applying pilot pressure to port 3 increases the required opening pressure at port 1 at a 1:1 ratio.

This valve is ideal for use as a pressure compensator, bypass valve, or pilot-to-close element in regenerative hydraulic circuits.
