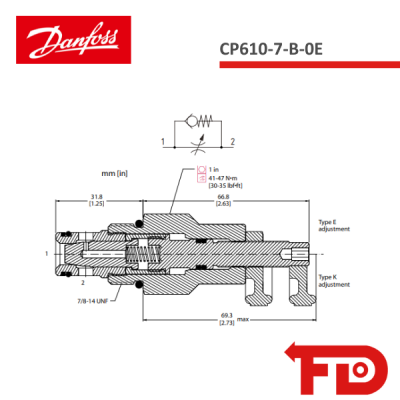

137701 - NEEDLE VALVE CP610-7-B-0E - DANFOSS
Needle Valve, Fully Adjustable, Fine Metering with Reverse Free Flow
350 bar [5000 psi] • 55 l/min [14 US gpm]
DESCRIPTION AND OPERATION
This is a needle valve with a reverse free flow check. It is a variable orifice used to create a pressure drop when flow passes from port 2 to 1, while allowing free flow when flow passes from 1 to 2. Clockwise rotation of the adjustment screw decreases the flow setting until it is completely closed. The setting can be locked by tightening lock nut or knob on the adjustment screw
If you need help Contact Us!
137701
- Size
- 10
- Way
- 2
- Cavity
- SDC10-2
- Rated pressure
- 350 bar [5075 psi]
- Rated flow at 7 bar [100 psi]
- 55 l/min [15 US gal/min]
- Leakage
- 30 drops/min @ Rated pressure
- Weight
- 0.18 kg [0.40 lb]
